Speck VHC
| MEDIA | DRY AND HUMIDIFIED GASES |
| OPERATING LIQUID | MAX. 80°C |
| ABSORBED GAS | DRY MAX. 200°C SATURATED MAX. 100°C |
| MINIMUM INLET PRESSURE | 33mbar |
| FLOW RATE | 110 - 1600M/H |
| INPUT DRIVER | 1450 RPM at 50Hz / 1750 RPM at 60Hz; 975 RPM at 50Hz / 1175 RPM at 60Hz |
| SHAFT SEALING | Mechanical Seal and Magnetic Clutch System |
| SHAFT SEALING | DIN EN 1092-1 PN40 |
| Made In | Germany |
| Downloads | Catalog_Speck_VHC_Series.pdf |
| PT. Roda Rollen Indonesia Catalog |

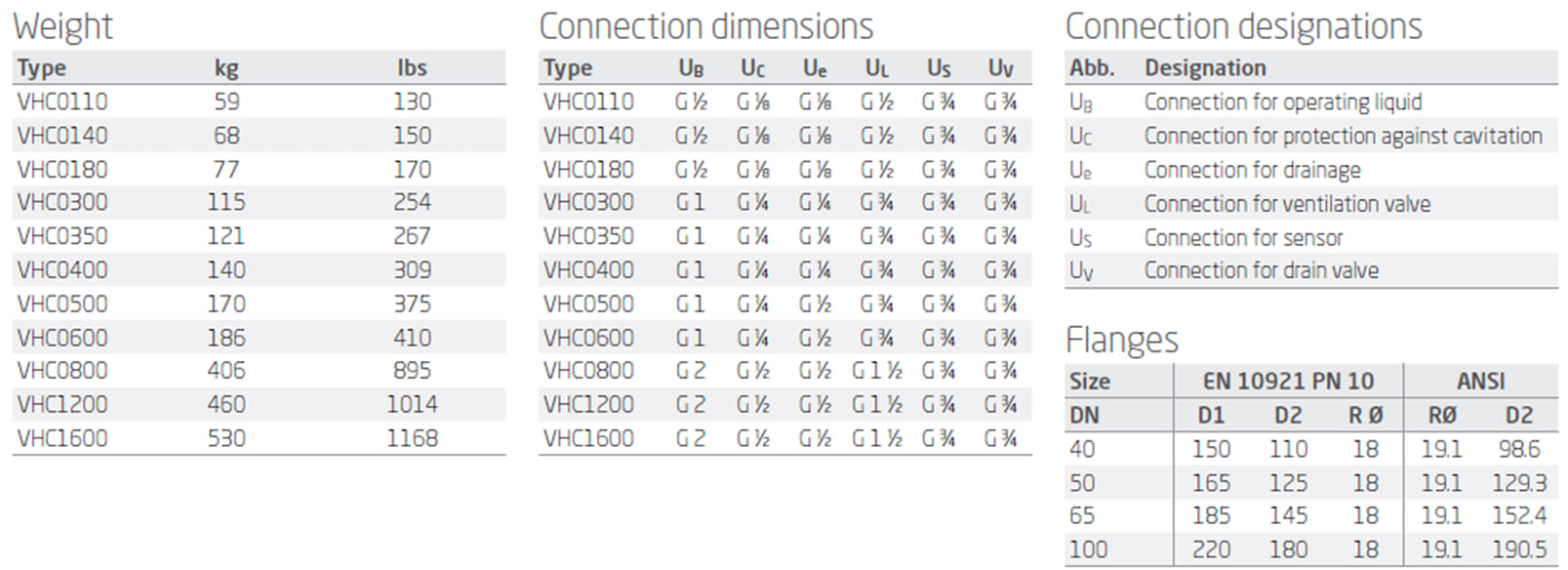

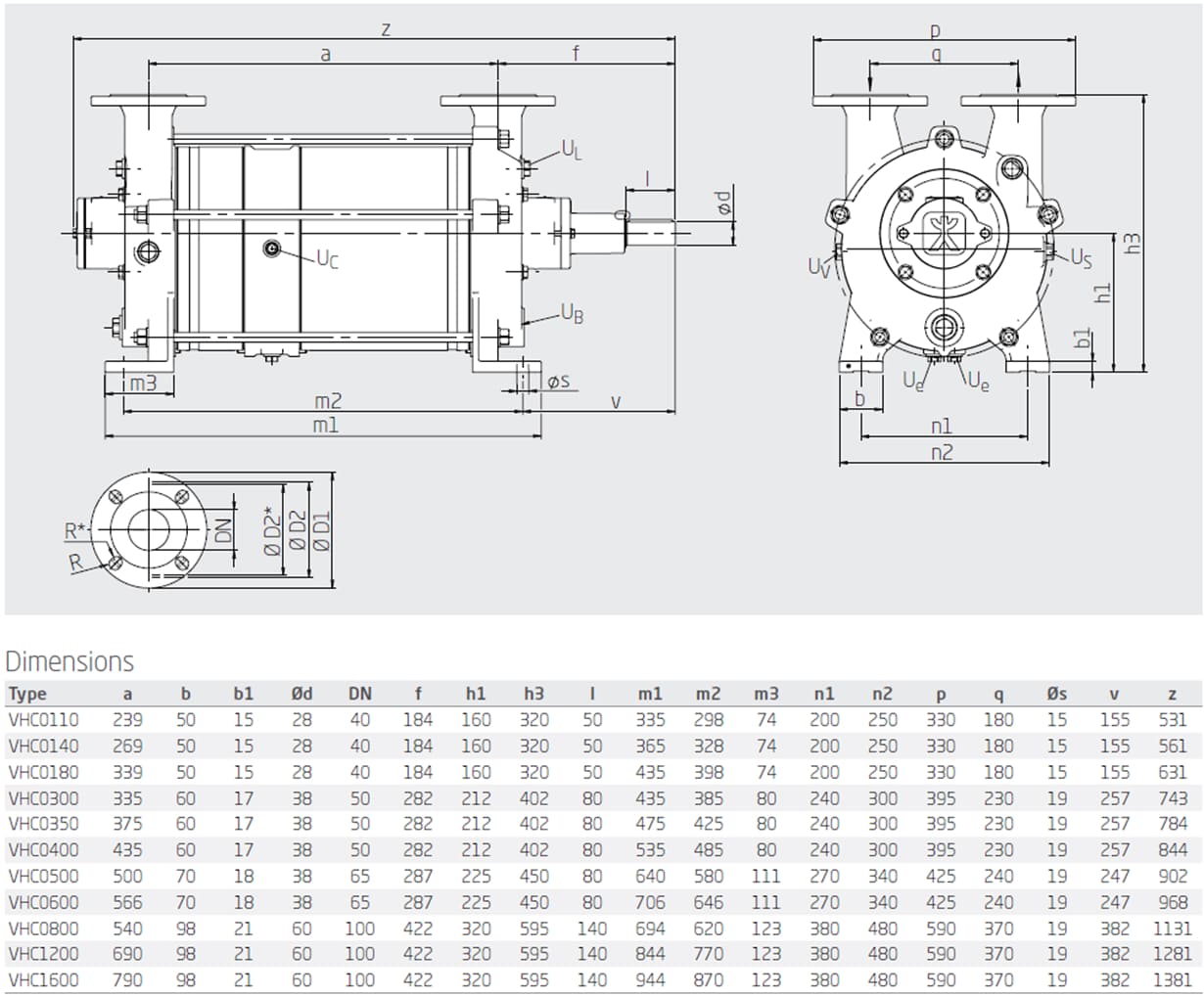

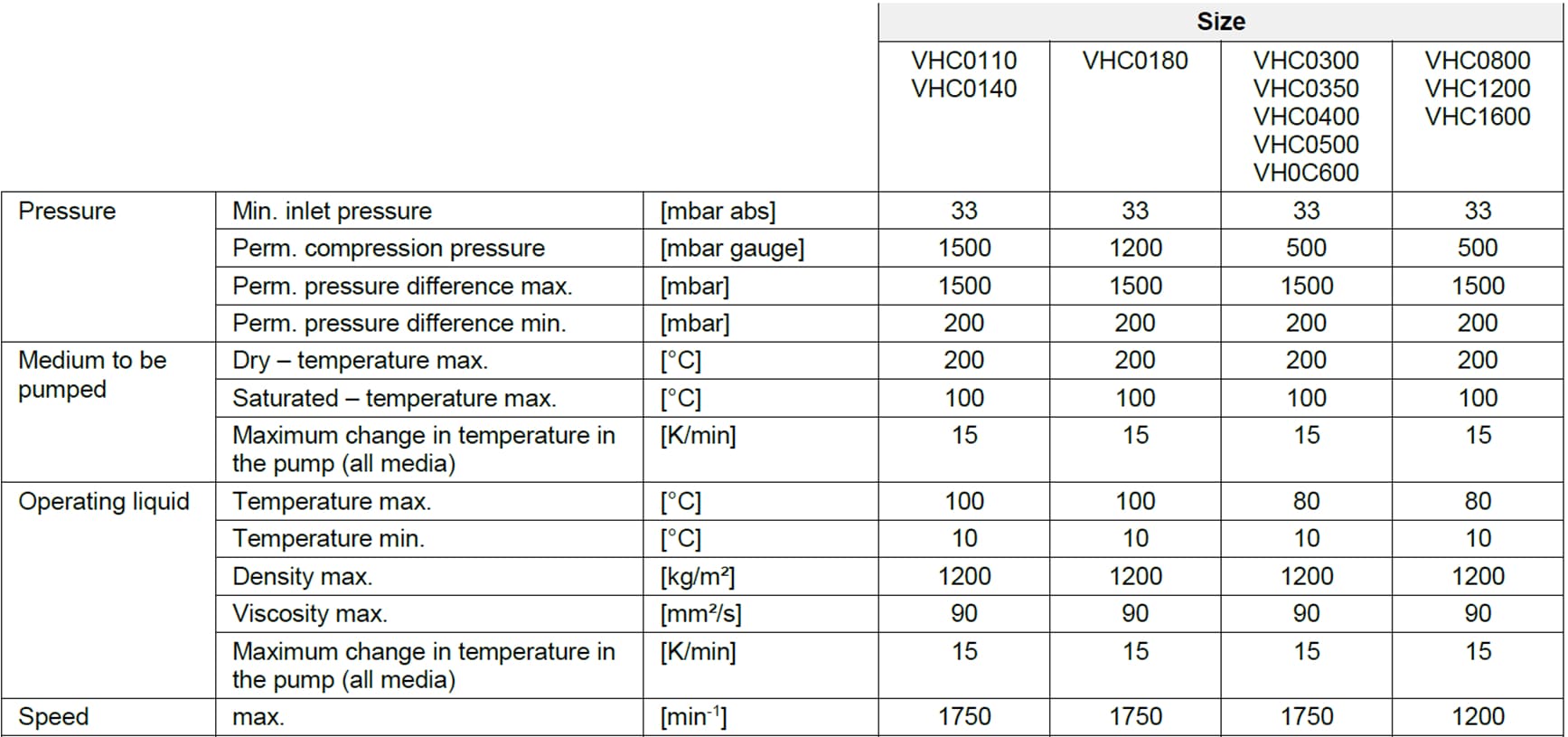

Specification Table
